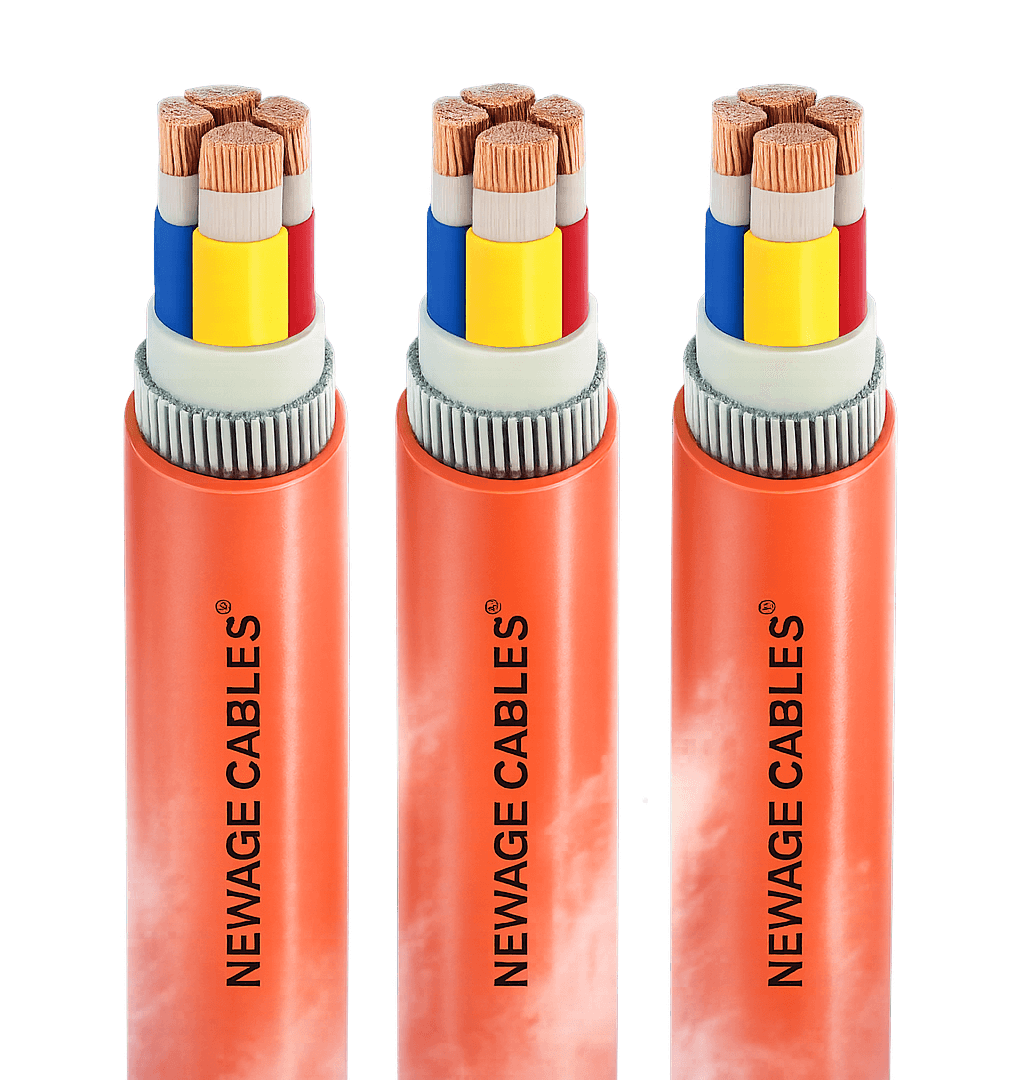

Conductor: Cu, | AL
Insulation: PVC | XLPE | LSZH
Sheath: PVC | LSZH | MDPE
- Available Single Core / Multicore as required.
- Available Armoured / Unarmoured as required.
- Available in flexible Cu conductor also.
- From 1.5 to 1000mm²
- Rated Voltage: 1KV to 3.3KV
- Reference Standard: BS: 6346, IEC 60502-1, 60228, 60332-1
-15°C
Minimum service temperature is-15°C
70°C
Conductor operating temperature 70°C for standard PVC and LSZH insulation
90°C
Conductor operating temperature 90°C for XLPE insulation
250°C
Maximum short-circuit temperature 160° C for PVC & 250°C for XLPE
Flame Retardant
Indoor/outdoor Installation
- LSZH is characteristic of a material & not a separate polymer.
- It doesn't contain halogens.
- Thermoplastic polymers.
- Fire retardant.
- No toxic gases & fumes.
- Very light & cleaner smoke is created during combustion.
- High oxygen index.
Highly Reactive Elements
- Fluorine, Chlorine, Bromine, Iodine
When Burned
- Toxic & irritant gases are emitted.
- Dense black smoke.
- Create acid when mixed with water.
- Acid is highly corrosive to metals & most solids.

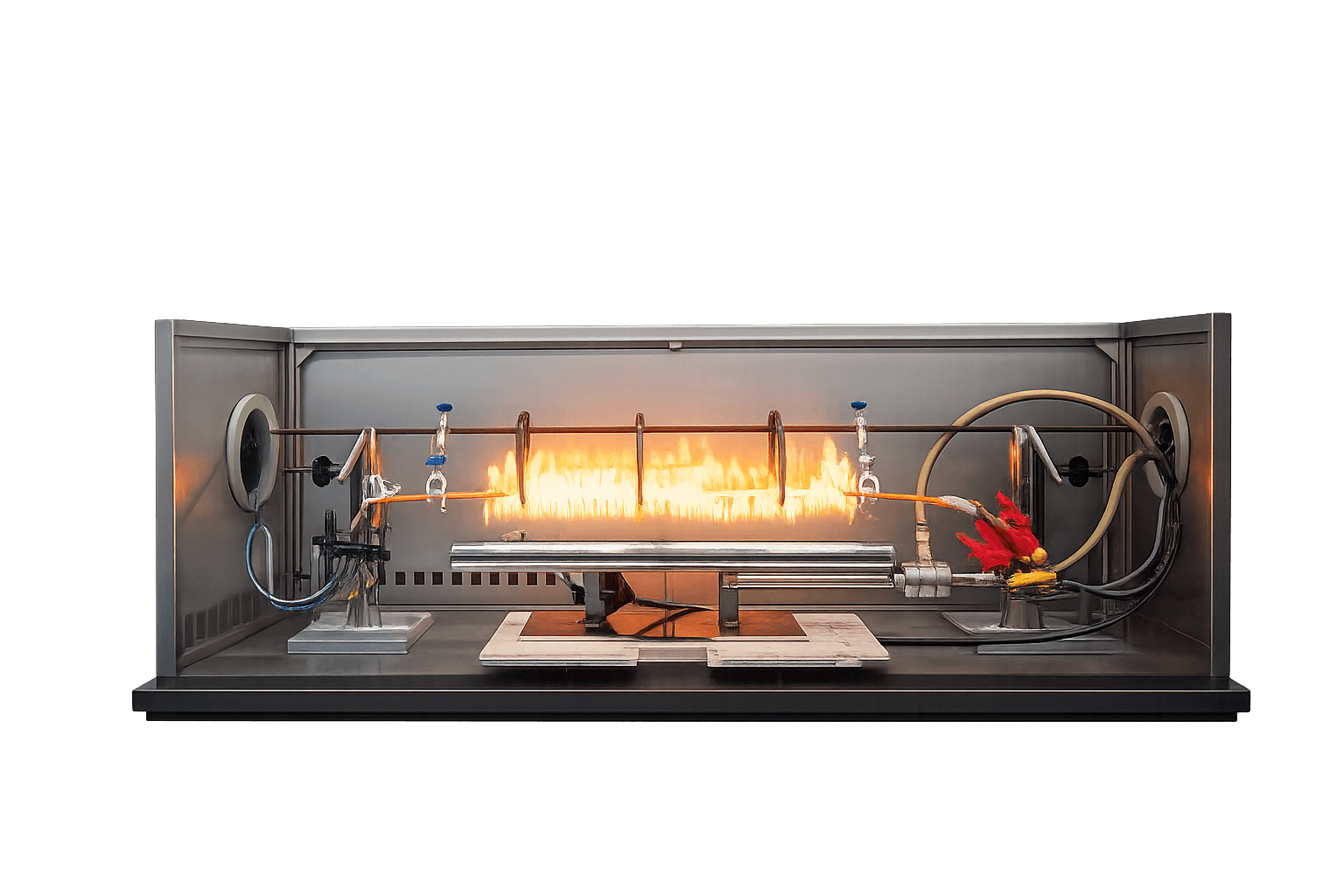

- Best resistance to fire & its propagation.
- Long term circuit integrity during fire.
- The duration of survival under fire condition.
Newage cables is the pioneer in manufacturing LSZH cables with the following properties:
- Superior flame retardancy.
- Very light & clearer smoke is created during combustion.
- Greatly increases visibility in the event of a fire.
- Slow to ignite, burns slowly & gives off reduced smoke & fumes which can kill people.
- Does not produce corrosive halogen acid gases which destroy sensitive electronic equipment.
- Helps people to escape from a fire – helps them to see & to breathe for longer.
- Wins time for people to escape & for emergency services to help.
- When tested to BS 6425 & IEC 60754 Part 1 & 2 the acidic gas evolved during combustion is less than 0.5% by weight of material.
- When tested in accordance with BS 2863, ASTM-D2863, the oxygen index of both bedding & sheath is up to 45% which is far better rating as mentioned in standard.
